Description
Specifications:
Working voltage: DC5V
Applicable battery: suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2V

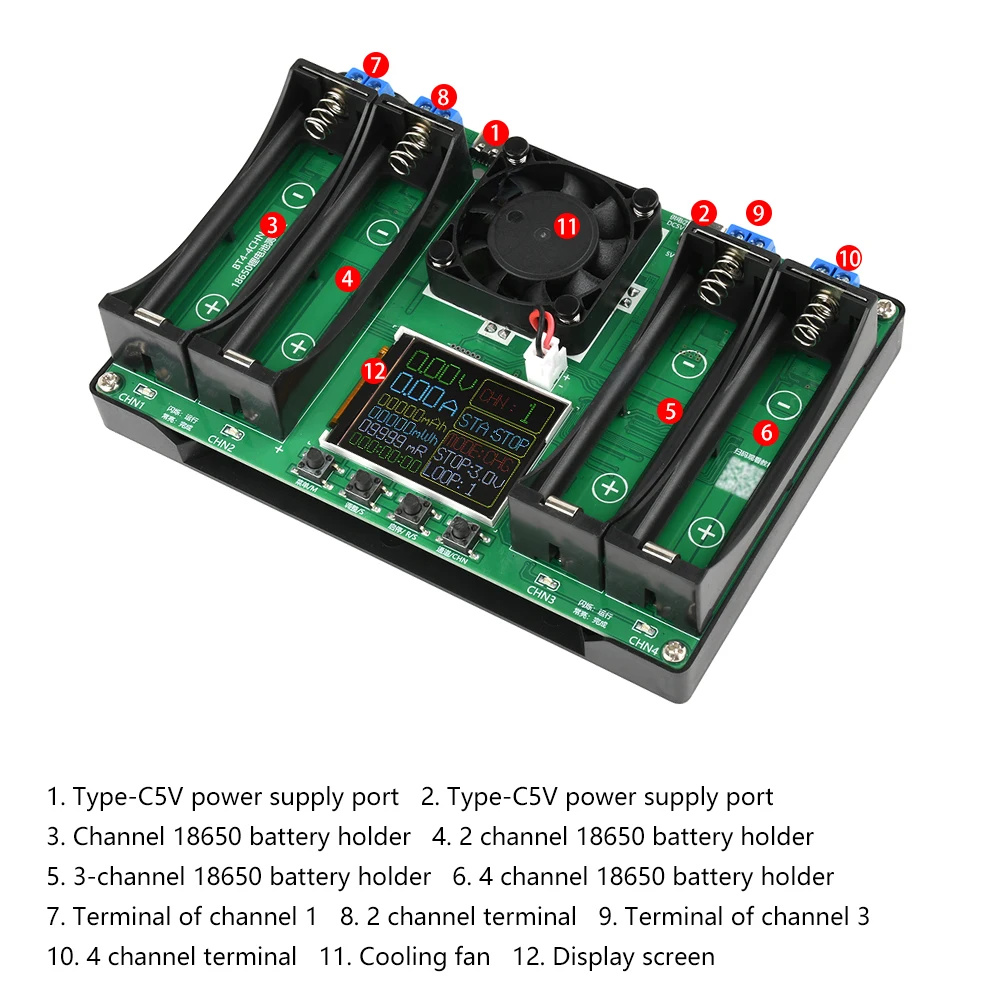

Power supply interface: Dual Type-C power supply interface (power supply and power cord are not included)
System language: English/Chinese can be switched
Test quantity: 4-way charging and discharging measurement
Internal resistance measurement: support, use DC two-wire method to test internal resistance
Charging function: support, automatic cut-off charging when fully charged (lithium iron phosphate battery charging is not supported)
Discharge function: support, automatically stop when conditions are met, and the discharge current is not adjustable
Automatic charging and discharging: supported. The battery is fully charged at the end of automatic mode
Cyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode)

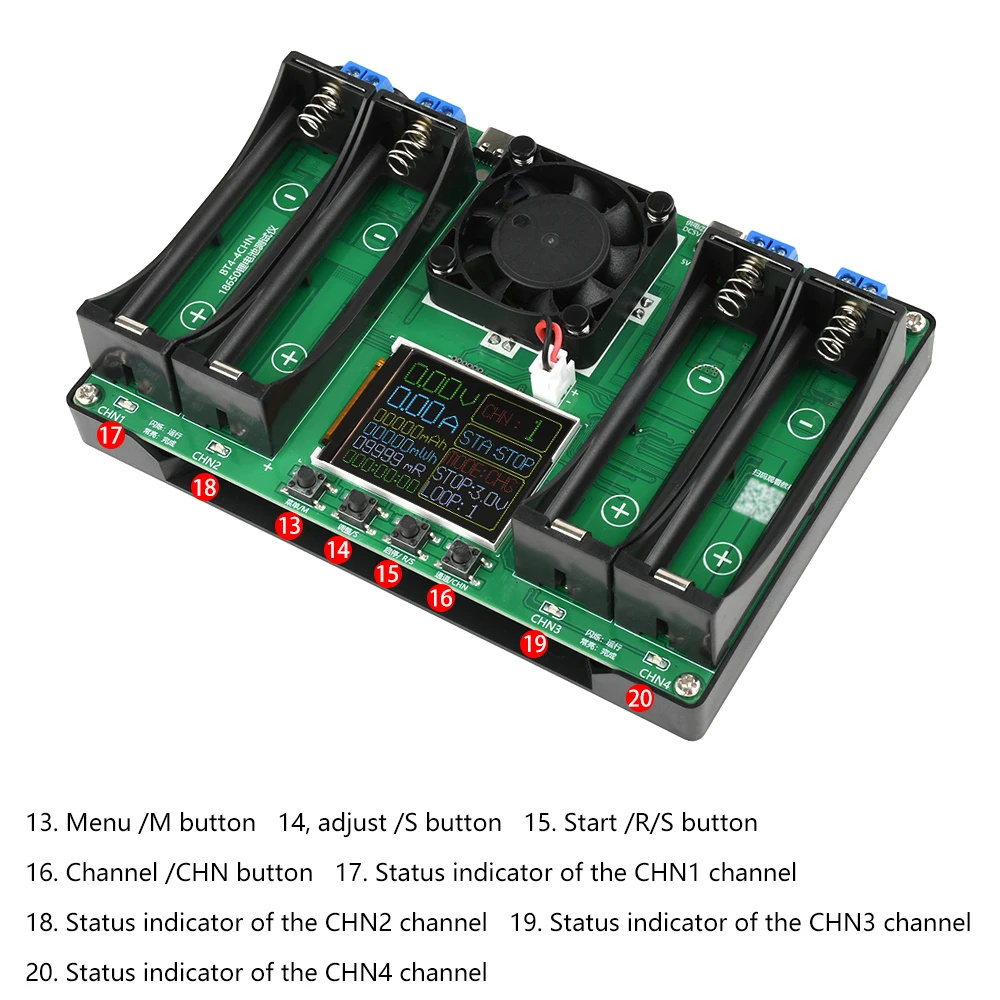

Status prompt: Supported
Cooling mode: fan active cooling
Overheat protection: support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gears
Discharge current: Maximum current is approximately 1A, not adjustable, and customization is not supported.
Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V
Power-off saving: only save the set parameters, not the measurement data

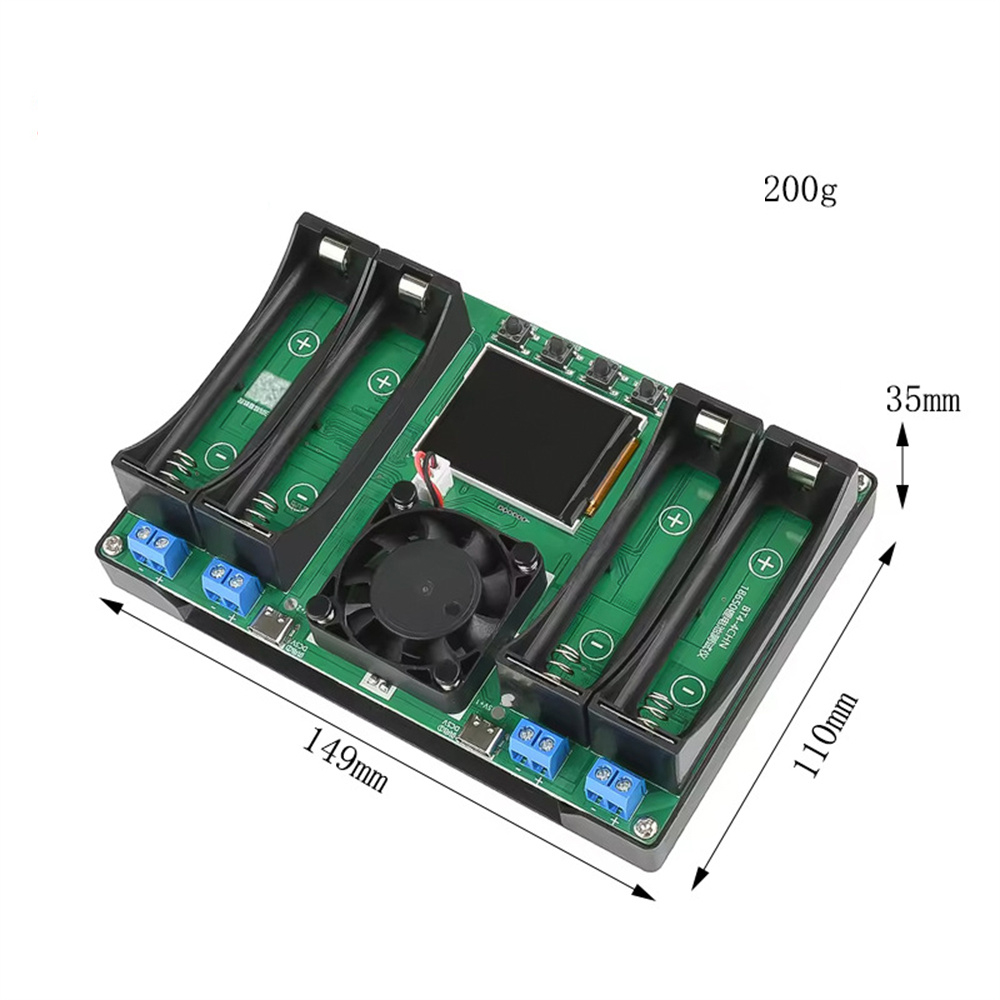

Product size: 150 * 103 * 36mm
Package size: 182 * 112 * 50mm
Features:

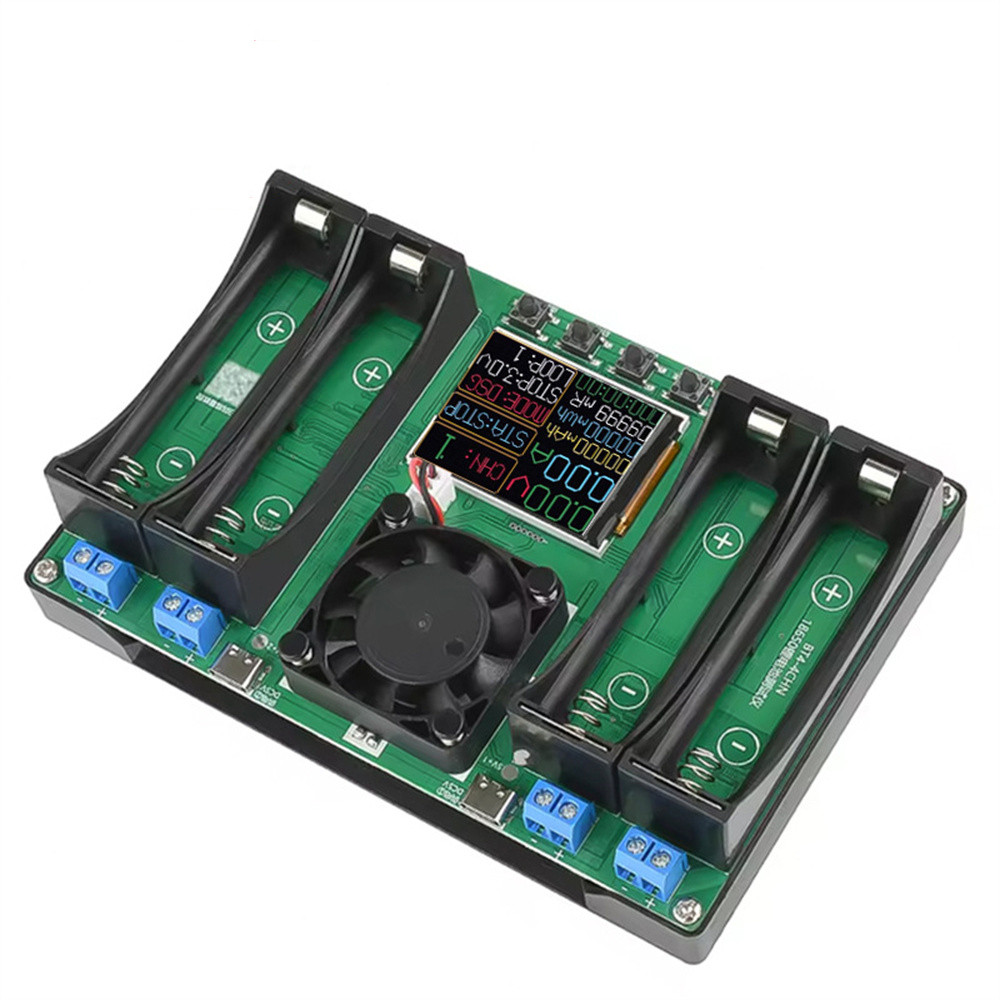

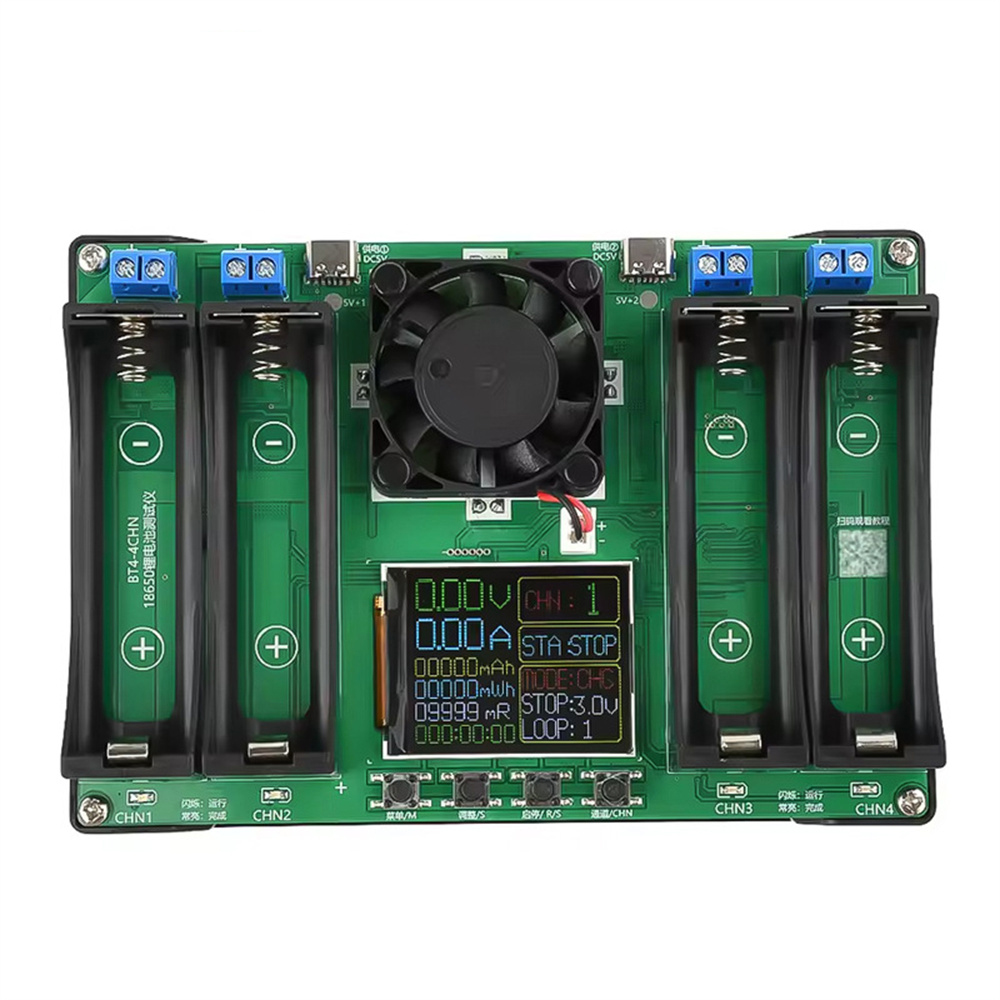

1.The product supports four-channel capacity and internal resistance measurement
2.Supports separate charging and discharging, and supports up to 9 charge and discharge cycles in automatic mode
3.Each channel is independent of each other, set separately, and runs independently without interfering with each other
4.18650 battery holder uses a compact battery holder, suitable for flat-head battery measurement
5.Fan active heat dissipation Supports overheating protection
6.Uses DC two-wire method to test internal resistance
7.Note: does not support lithium iron phosphate battery charging
Package includes:
1 x 4 Channel Charger
1 x User Manual
