Description
Specifications:
| Model | W03 |
| System | Operating System: Linux APP: O-KAM Pro |
| Collection | Processor: Ingenic T23 Memory: 512Mb Minimum Illumination: 0.3～0.5Lux (Color Mode), 0Lux (Black and White Mode) Lens: GC2083 Viewing Angle: D130° diagonal |
| Video | Night Vision: Black and white night vision, automatic light-sensing switching Compression Standard: H.264+ / MJPEF / JPEG Multi-Stream: Main Stream: 1080P/15fps; Sub-Stream: 360P/15fps Bitrate: CBR/VBR two bitrate control modes, with an output bitrate range of 128～4096kbps |
| Audio | Input: Built-in -38dB microphone Output: / Sampling Frequency/Bitwidth: 8KHz/16bit Compression Standard/Bitrate: G711A |
| Network | Network Protocol: TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P, IPv4, etc. Wireless Network: IEEE 802.11b/g/n Wireless Frequency: 2.4~2.4835GHz WIFI6+BLE Wireless Security Encryption: 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption Wireless Connection: QR code pairing, bluetooth pairing |
| Button | Toggle Button 1: Power On/Off Toggle Button 2: / Reset Button: Long press to restore factory settings |
| Storage | External TF Card: Supports T-Flash card (up to 128GB) Cloud Storage: Supported |
| Alarm | Alarm Detections: Supports motion detections |
| Physical Parameter | Charging Voltage: DC5V±5% 1A Battery Model: 102530 Battery Capacity: 800mAh Working Time: Approximately 4.5 hours of continuous operation Charging Time: 4-5 hours Operating temperature: -10～55℃ Operating humidity: <90% Power consumption: 0.9W |
Features:
1. Compact Design: Easy to install in different indoor and outdoor settings.
2. Multi-Device Sharing: Allows up to 4 simultaneous users to monitor the camera.

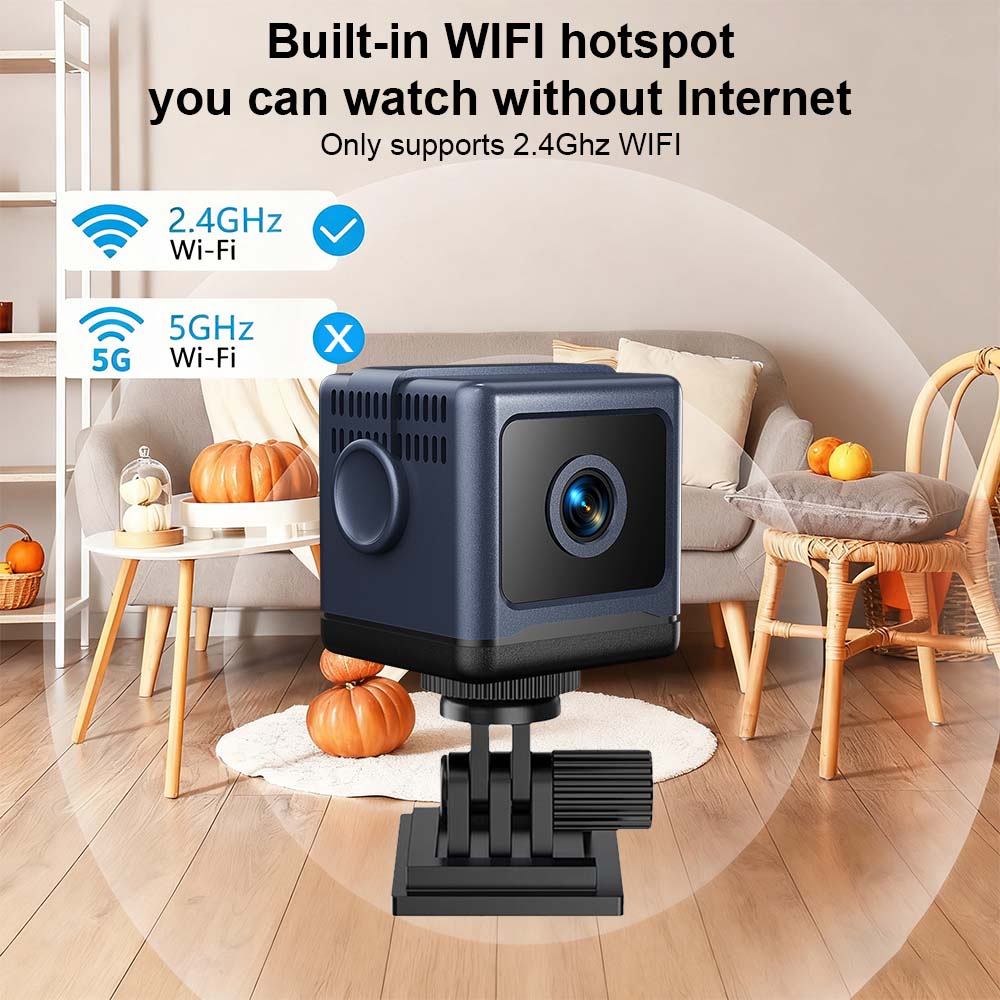

3. Built-In Wi-Fi Hotspot: Enables video streaming without Internet connectivity.

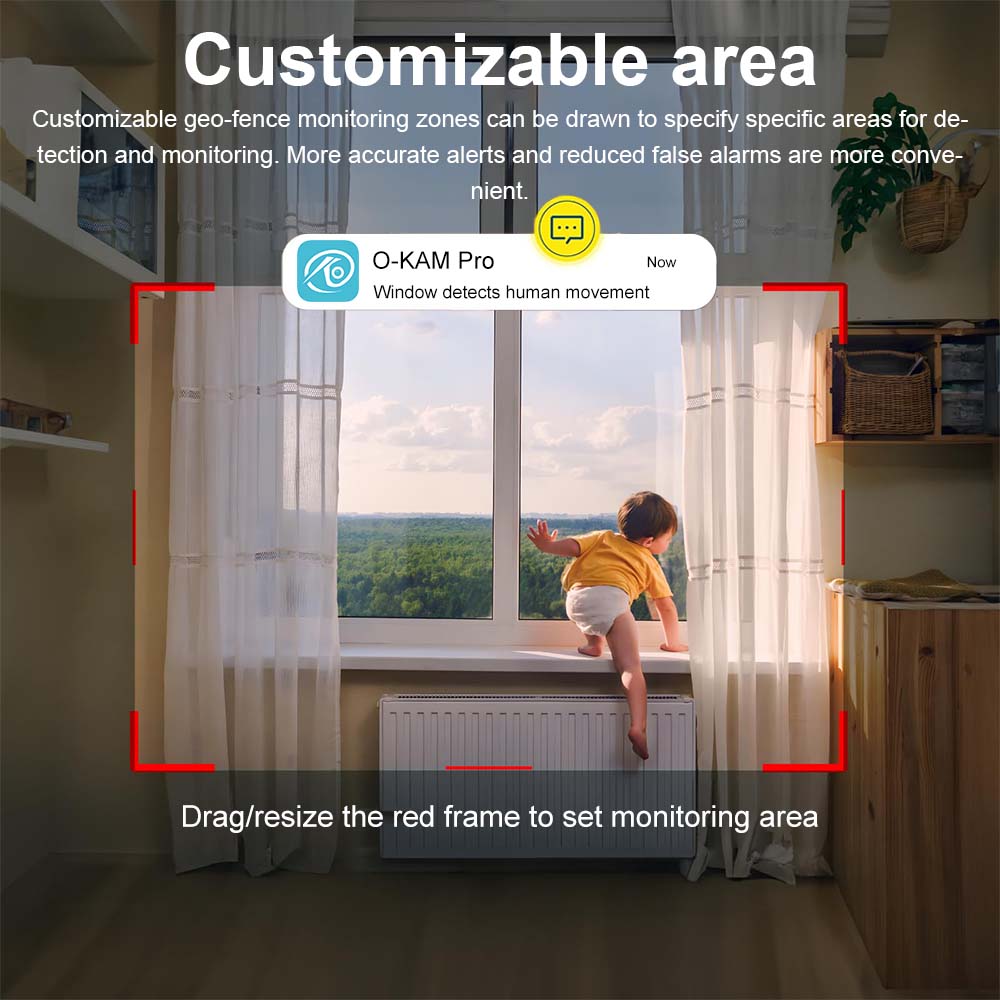

4. Customizable Monitoring Zones: Reduces false alarms with defined detections zones.

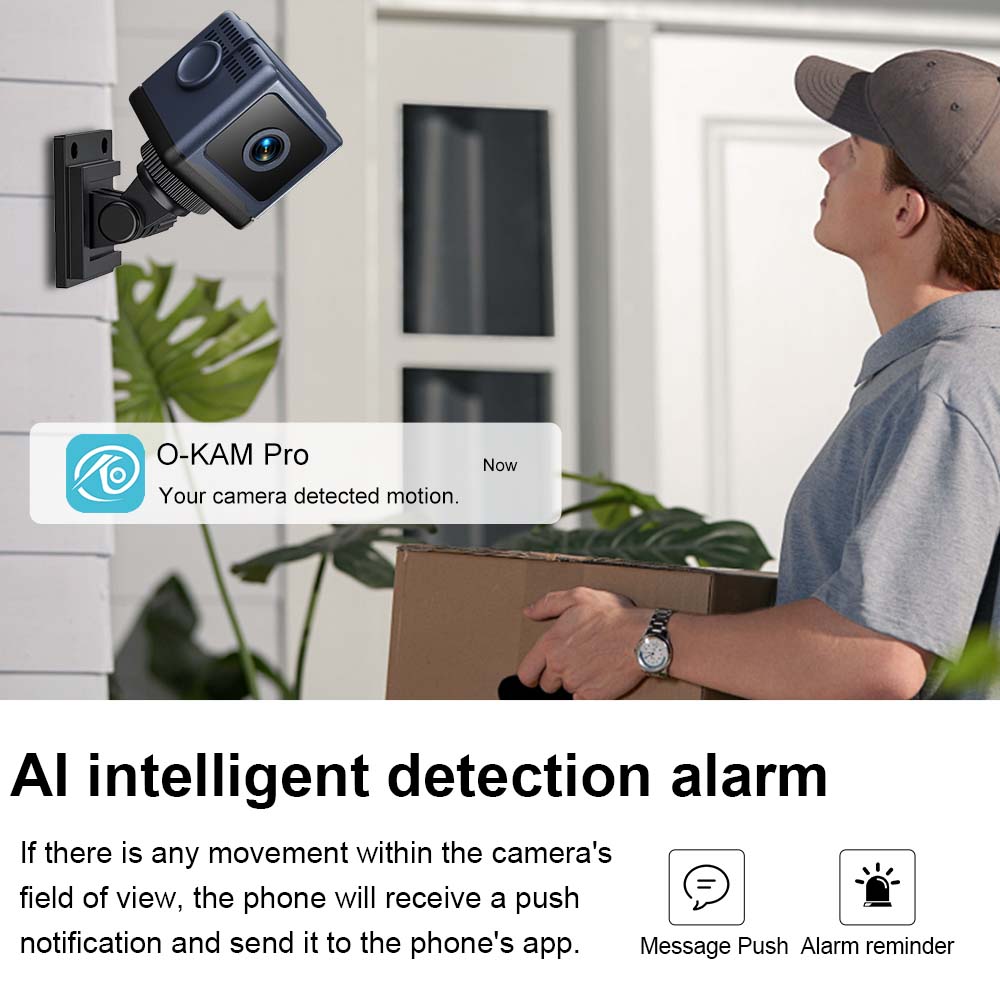

5. AI-Powered Motion Alerts: Push notifications sent directly to the connected mobile application.
6. Wide Application Range: Suitable for home security, pet monitoring, and indoor/outdoor use.
Package Includes:
1x Main Host
1x Bracket
1x Type-C Cable
1x Screws Pack
1x Manual
